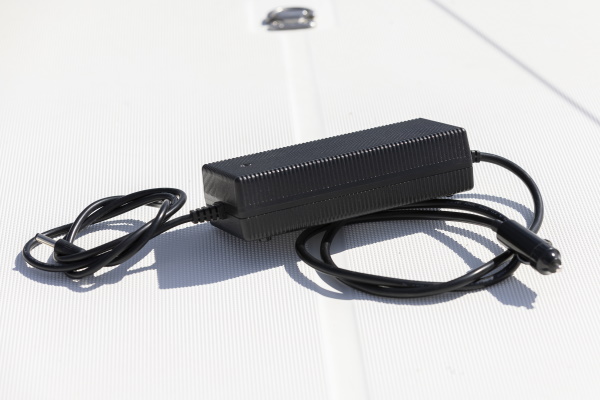

TEMO's 12V charger has been specially designed to recharge your TEMO·450 aboard your boat, using a cigarette-lighter type socket.
With a power of 100 watts (up to 8.3 amps at 12V), the charger consumes approximately 30 Ah at 12V for a full charge. Your TEMO·450 battery will be fully charged in approximately 3½ hours.
Instructions for use:
Before plugging in your motor to charge up, make sure you use the charger in a well-ventilated area and do not cover the TEMO or the charger to avoid overheating during the charging process.
Note that the TEMO·450 charging connector is waterproof and IP67 certified. However, always check that the connector is dry and that the charger itself is not wet before charging to avoid the risk of a short circuit or sparks.
When charging the TEMO·450, do not plug in the magnetic key, as the motor gauge does not indicate the state of charge.
When charging is complete after around 3½ to 4 hours (if the battery is completely flat), the charger indicator light will change from red (while charging) to green, indicating that your TEMO·450 is fully charged.
To disconnect your TEMO·450, remove the plug from the 12V socket first, then the plug from the motor itself.
How do I winterize the TEMO·1000 battery?
To activate this mode, the procedure is simple:
1 · Check that your battery's charge level is below 50% by pressing the ON/OFF button on the battery for 2 seconds (2 green LEDs on the battery maximum).
2 · Plug the charger into the battery's rear connector, then connect the plug to the mains.
3 · Then simply hold down the battery ON/OFF button for 5 seconds. When wintering mode is activated, the first LED flashes, alternating between red and green.
4 · Wintering mode starts and the battery goes into standby when the charge reaches 50% (all LEDs go out).
5 · You can then disconnect the charger after the battery has gone into standby mode, by first removing the wall plug.
6 · The wintering mode is automatically deactivated when the battery is reconnected or inserted in the motor.
